ATF MB-9 Red ist ein Öl für Automatikgetriebe auf Basis von synthetischen Ölen.
ATF MB-9 Red Produktdatenblatt
ATF MB-9 Red Sicherheitsdatenblatt

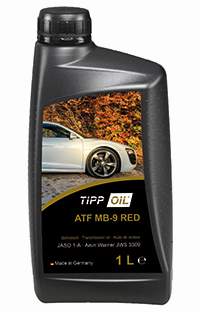

ATF MB-9 Red
Description
TIPP-OIL ATF MB-9 is an Oil for automatic transmission on the Basis of synthetic Oils. ATF MB-9 was specially developed for the specified specifications and applications. It provides thanks to its special additives for maximum lubrication and protection against wear. ATF MB-9 is a universal ATF (Automatic Transmission Fluid) of the latest Generation for all of the automatic transmissions with and without controlled torque Converter lockup clutch (so-called gear-clutch lock-up clutch).
Instructions for use
TIPP-OIL ATF MB-9 is particularly suitable for use in modern 7-speed automatic transmissions from Mercedes-Benz. It allows a maximum wear protection in all operating conditions. The operating instructions of the motor vehicle and engine manufacturers are to be observed.
Quality classification specification
- JASO 1-A
- Aisin Warner JWS3309
Recommendation
- BMW 5er | BMW 7045E (3er) | BMW LA 2634 | BMW LT71141
- Ford FNR5 | Ford XL-12 transfer gearbox
- Distributor gear GM AutoTrak II
- Honda ATF Z-1
- Hyundai/Kia JWS3314 | Hyundai/Kia JWS3317
- Hyundai/Kia SP-II | Hyundai/Kia SP-III
- Idemitsu K17
- Kia Red-1
- Mazda ATF-M III | Mazda ATF-MV
- MB 236.11 | MB236.10 | MB236.9 | MB236.81
- MB236.2 | MB236.1 | 236,14 | MB236.16 | MB 236,17 MB 236,7 | MB236.6 | MB236,5 | MB236.3
- Mitsubishi Diaqueen ATF-J3 | Mitsubishi SP-II Mitsubishi SP-III
- MOPAR AS68RC
- Nissan 402 | A Nissan Matic-D/J/K
- PSA AL-4
- Renault DP0
- Subaru ATF | Subaru ATF-HP
- Suzuki 3314 | Suzuki 3317
- Texaco ETL-7045E | Texaco ETL-8072B | Texaco N402
- Toyota T | Toyota T-II | Toyota T-III | Toyota TIV
- Volvo 1161540 | Volvo 1161640 | Volvo 4-Gear (P/N 1161621)
- VW G 052 162 VW G 052 990 VW G 055 025
- ZF TE-ML 09, 11 (3/4/5 gear)
Characteristics
- Very good lubricating ability even at low temperatures in the Winter
- High, stable viscosity index
- Very low pour point
- Very good oxidation stability
- Protection against wear, corrosion and foaming
- Excellent friction stability
- High thermal and oxidative stability
- Excellent cooling performance
- Outstanding shear stability
- Minimum Evaporation Losses
- Neutral behaviour towards sealing materials
- Neutral behavior by inhibition compared with non-ferrous metals
Technical specifications
| Properties | Data | unit | testing under |
| Kinematic Viscosity at 100°C | 7,2 | MM²/S | ISO 51562-2 |
| viscosity index | 153 | ISO 2909 | |
| Appearance | RED | visually | |
| Density at 15°C | 846,0 | KG/M³ | DIN 51 757 |
| pour point | -45 | °C | ISO 3016 |
