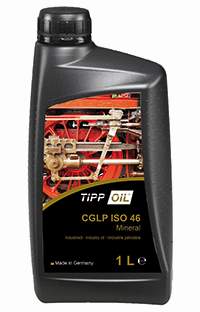

CGLP ISO 46

CGLP ISO 46 is a mineral CLGP-Bettrackracköl. CGLP ISO 46 is characterized by a special lubricating and sliding properties and high adhesion.

CGLP ISO 46 product data sheet
CGLP ISO 46 safety data sheet

Category:

Description

TIPP-OIL CGLP ISO 46 is a mineral CGLP slideway oil. It features a special lubricating and sliding properties and high adhesion. It is therefore particularly suitable for the lubrication of slide and Bed ways. CGLP ISO 46 is formulated with mineral base oils and contains additives and corrosion inhibitors to prevent rust, and stains on slide and Bed ways. CGLP ISO 46 is largely resistant to aqueous Metal working fluids, such as drilling, cutting and grinding emulsions or solutions. The lubricant film is rinsed of these media is not to be washed or Fort.

Instructions for use

TIPP-OIL CGLP ISO 46 is for all types of Lubrication systems, such as pressure, circulation and the Central lubrication system for the dive - and pressure-running lubrication, as well as for the lubrication of Hand with oil can. It is also suitable for lubrication of bearings and gears.

specifications

  • AFNOR E 60-203 L-G/HG
  • DIN 51502 (CGLP)
  • DIN 51517-3
  • DIN 51524-2
  • GB 11118.1-94 L-HM
  • ISO 11158 HM
  • ISO 6743-6 CKC
  • SAE MS1007 type E
  • SH/T 0361-98 L-G

Recommendation

  • Eaton/Sperry Vickers M-2950-S

Characteristics

  • Very good Stick-Slip behavior
  • Adhesion
  • Good Demulsification Properties
  • Good corrosion protection, no rust or stains
  • Resistance to aqueous Metal working fluids

Technical specifications

 Properties  Data  unit  testing under
 Kinematic Viscosity at 40°C    45,3  MM²/S  ISO 51562-2
 Kinematic Viscosity at 100°C     7,1  MM²/S  ISO 51562-2
 viscosity index  117  ISO 2909
 Appearance   YELLOW  visually
 Density at 15°C  864,0  KG/M³  DIN 51 757
 pour point  -36  °C  ISO 3016



All data given are approximate values and are subject to normal production fluctuations. To the best of our knowledge, all information corresponds to the current state of knowledge and our development. We reserve the right to make changes. All references to DIN standards are only used to describe the goods and do not constitute a guarantee. In the event of problems, request technical advice.
